Discover the Midra 4K Presentation switchers
The Midra 4K series presentation switchers are ideal for small/medium-sized fixed installations and live environments requiring the highest reliability, the lowest latency, unrivaled ease of use, optimal image quality and state-of-the-art live 4K processing features.
%20(1).png)
state of the art
Discover the Midra™ 4K Presentation switchers
The Midra™ 4K series presentation switchers are ideal for small/medium-sized fixed installations and live environments requiring the highest reliability, the lowest latency, unrivaled ease of use, optimal image quality and state-of-the-art live 4K processing features.
Extreme Performance
4K60 outputs
each with mirrored HDMI and SDI connectors
Flexible
these two outputs can be combined to create a dual-output edge-blended display or configured as two independent Program outputs or one Program output and one Auxiliary output
Dedicated multiviewer
with resizable widgets is available to monitor the Program & Preview screens and all the connected sources
Ten inputs for maximum performance
The Midra 4K series presentation switchers feature ten inputs, including eight 4K60 inputs (four HDMI 2.0, two 12G-SDI and two DisplayPort 1.2) and two 1080p inputs with user-selectable HDMI and SDI connectors.

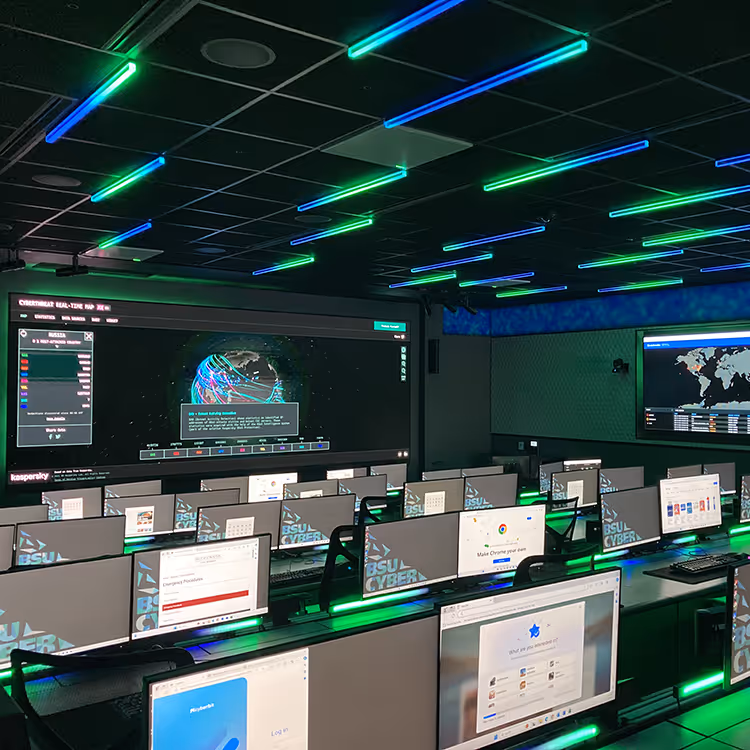

Conference rooms, staging live events, houses of worship, corporate lobbies and sports venues

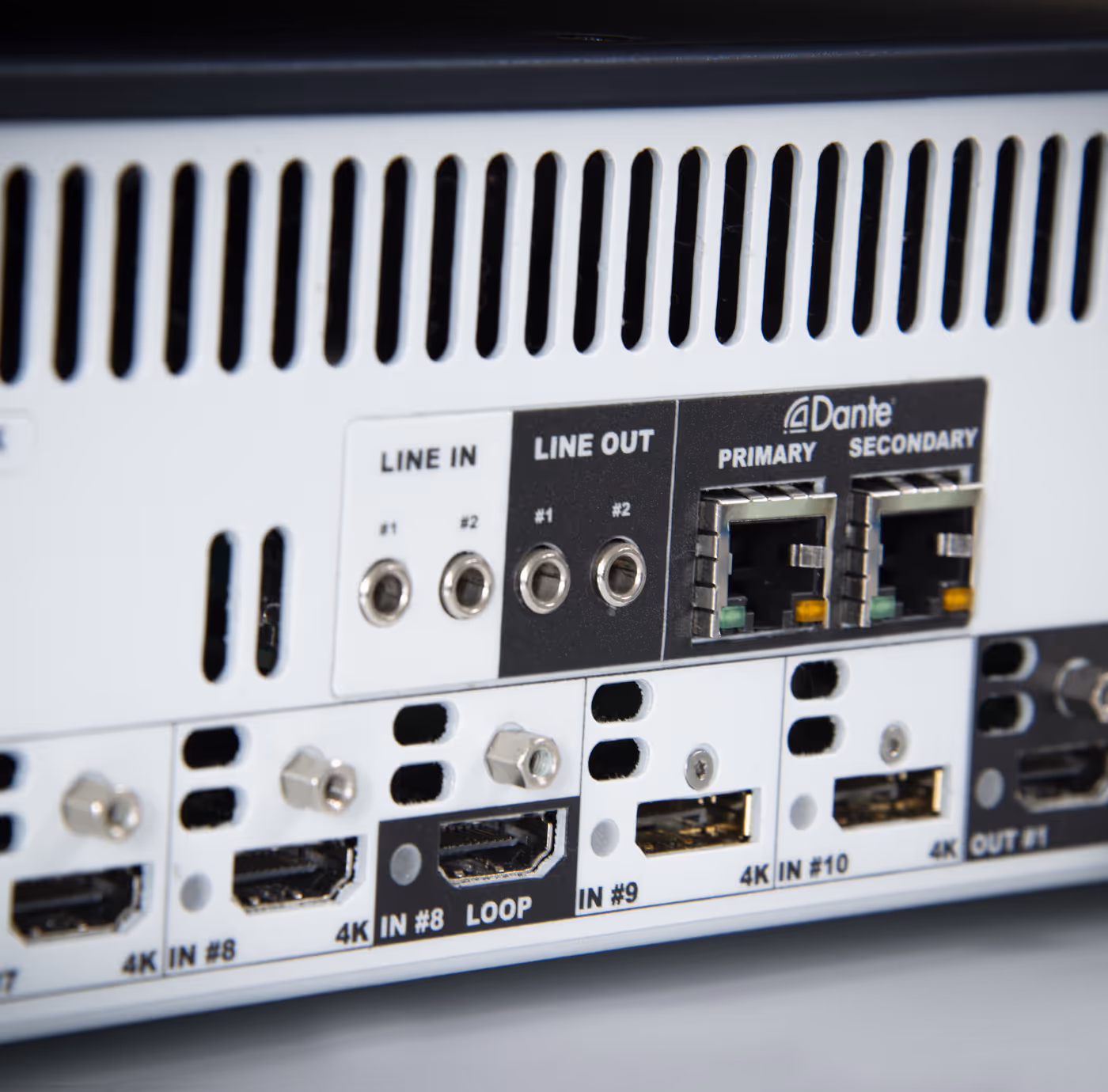

Versatile 4K Connectivity
The Midra™ 4K series presentation switchers feature ten inputs, including eight 4K60 inputs (four HDMI 2.0, two 12G-SDI and two DisplayPort 1.2) and two 1080p inputs with user-selectable HDMI and SDI connectors. They also have two 4K60 outputs, each with mirrored HDMI and SDI connectors. Depending on the product, these two outputs can be combined to create a dual-output edge-blended display or configured as two independent Program outputs or one Program output and one Auxiliary output. In all cases, a dedicated multiviewer with resizable widgets is available to monitor the Program & Preview screens and all the connected sources
Quality without Compromise
Built on the robust Midra 4K platform and Analog Way's 5th generation scaling engine from the LivePremier™ systems, the Midra 4K series offers ultra-low latency 4K60 10-bit 4:4:4 image processing, genlock synchronization, seamless switching, and 3D LUT management for color calibration and conversion (including SDR/HDR). With HDCP 2.2 compatibility, it is an excellent choice for corporate events, boardrooms, breakout sessions, and medium-scale LED video wall installations.
Advanced Functionalities
The Midra 4K series presentation switchers offer numerous powerful AV functionalities, including custom output formats, keying options, Cut and Fill at input level, and advanced video effects. They support easy audio management and offer optional Dante™ audio networking (32x32). The series also enables livestreaming up to 1080p30, allowing broadcasting over IP to online platforms like YouTube, Facebook, Twitch.tv, or distribution over a private network for display or editing using software such as OBS Studio.

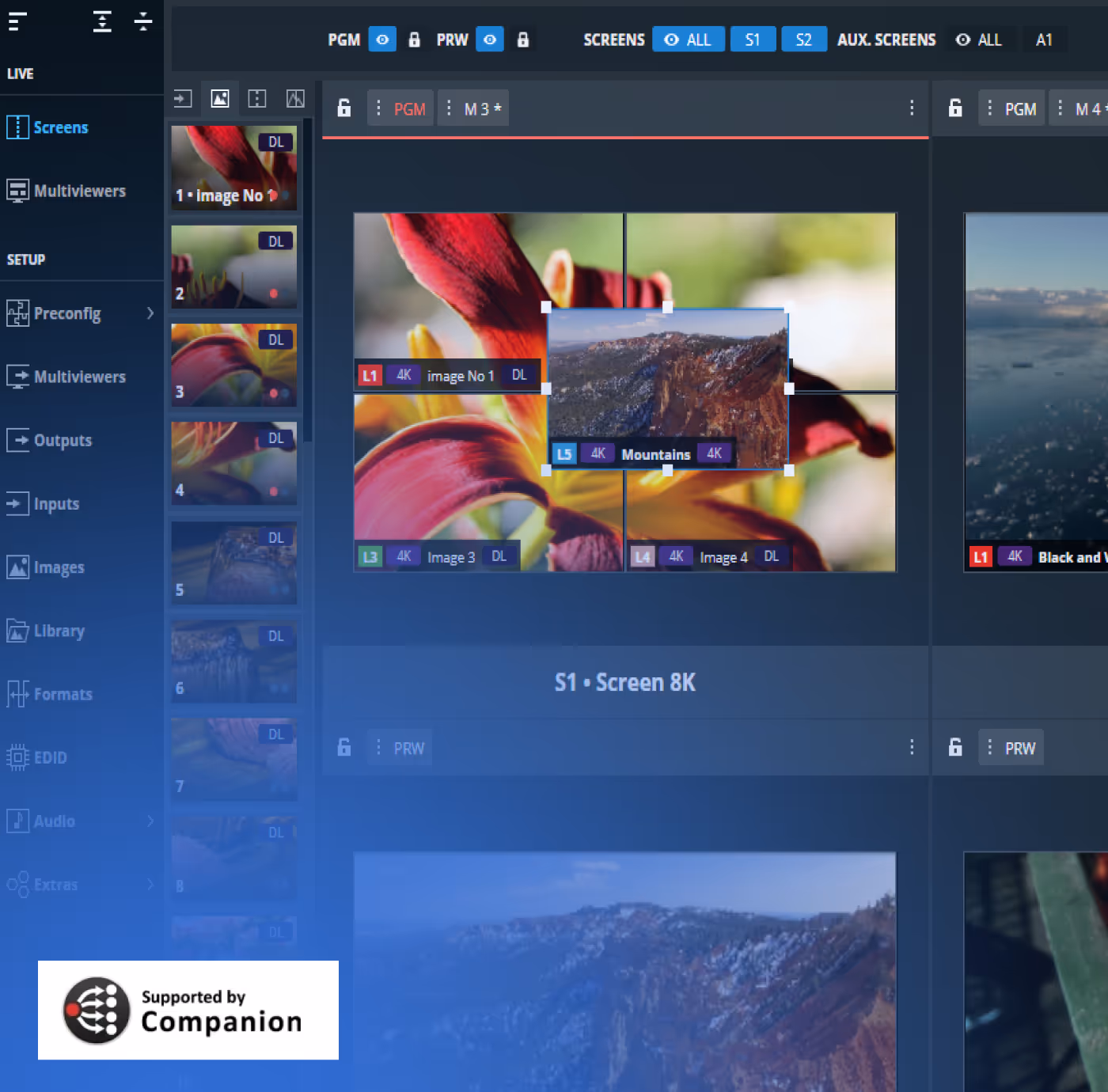

Flexible Control Options
The Midra 4K series presentation switchers offer front panel control and an intuitive Web RCS with live source thumbnails for easy setup and control. They support Ethernet control, SNMP management, and are compatible with various third-party control systems, including Crestron, AW VideoCompositor, and options like RC400T, Control Box3, and Shot Box2. Additionally, they work with control software like Companion, Universe, and SKAARHOJ Air Fly Pro.

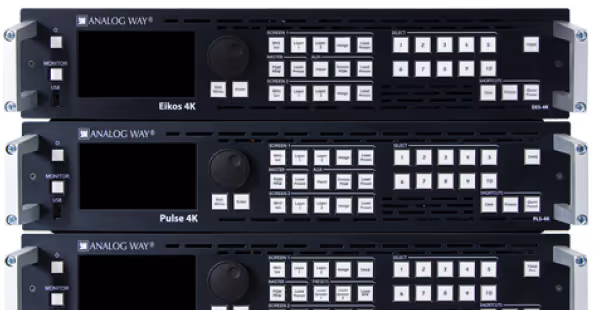

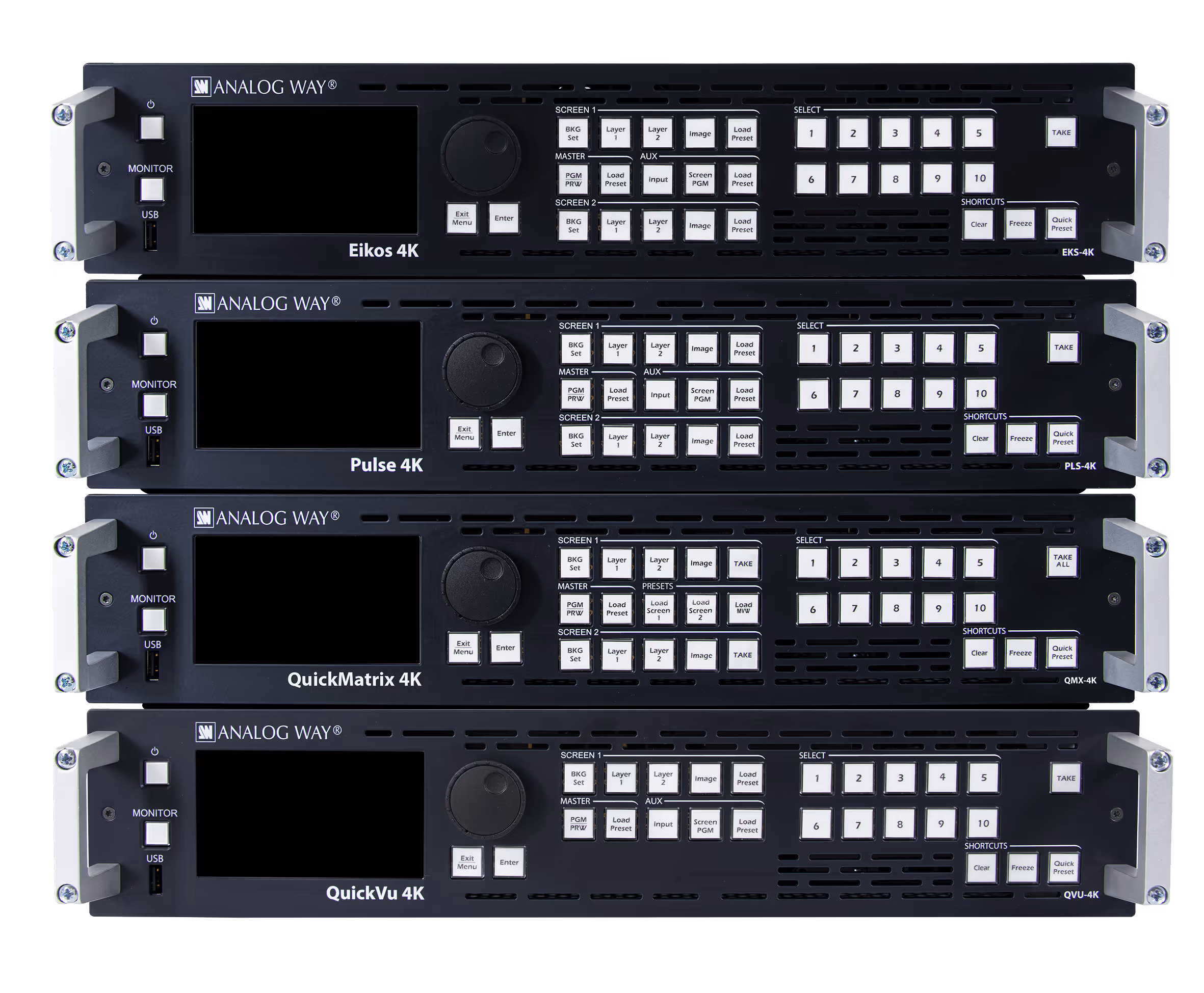

Which Midra 4k is right for you?
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Eikos 4K
The Eikos 4K is a powerful 4K60 multi-layer video mixer and seamless presentation switcher.
- 4K60 multi-layer seamless presentation switcher
- 10 seamless inputs including 8x 4K60 and 2x 2K60 inputs
- Two 4K60 PGM outputs with mirrored 12G-SDI and HDMI 2.0 plugs
- 3 modes: Edge-blending (dual-output PGM), Matrix (2 independent PGM) or Switcher (1 PGM + 1 AUX)
- Live or still background
- Up to four 4K split layers (or two 4K mixing layers)
- Dedicated multiviewer with resizable widgets (PGM, PRW, and inputs)
- Real-time 10-bit 4:4:4 video processing compliant with HDR10 & HLG
- IP Streaming of any Input or Output based on RTMP
- Advanced audio processing and dynamic routing
- Optional analog and Dante™ audio networking card (32x32 channels)
- Compact 2RU rugged chassis
Discover

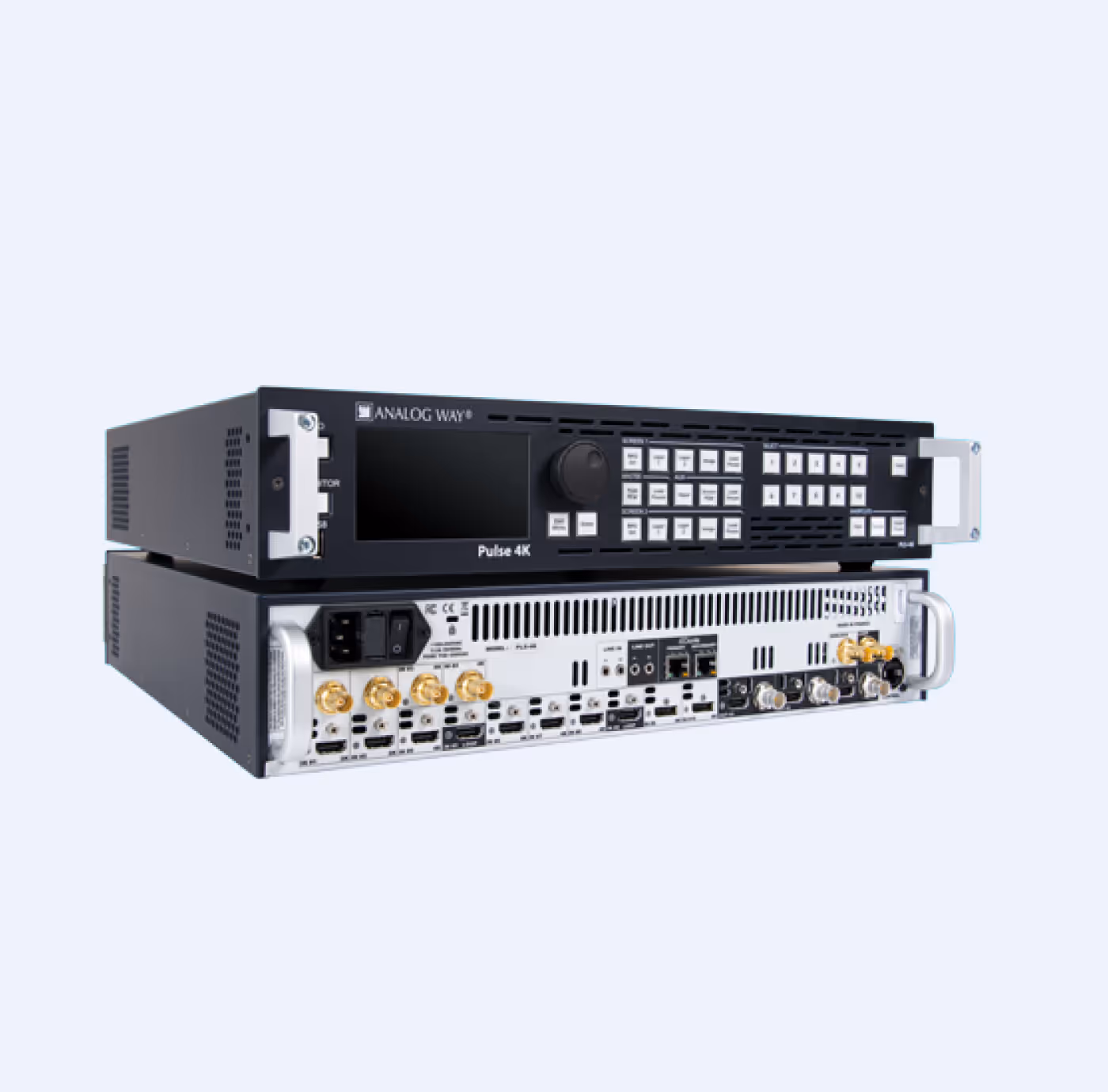

Pulse 4K
The Pulse 4K is a powerful 4K60 multi-layer video mixer and seamless presentation switcher
- 4K60 multi-layer seamless presentation switcher
- 10 seamless inputs including 8x 4K60 and 2x 2K60 inputs
- Two 4K60 PGM outputs with mirrored 12G-SDI and HDMI 2.0 plugs
- 2 modes: Matrix (2 independent PGM) or Switcher (1 PGM + 1 AUX)
- Live or still background
- Up to four 4K split layers (or two 4K mixing layers)
- Dedicated multiviewer with resizable widgets (PGM, PRW and inputs)
- Real-time 10-bit 4:4:4 video processing compliant with HDR10 & HLG
- IP Streaming of any Input or Output based on RTMP
- Advanced audio processing and dynamic routing
- Optional analog and Dante™ audio networking card (32x32 channels)
- Compact 2RU rugged chassis
Discover
QuickMatrix 4K
The QuickMatrix 4K is a powerful 4K60 multi-layer video mixer and seamless presentation switcher.
- 4K60 multi-layer seamless presentation switcher
- 10 seamless inputs including 8x 4K60 and 2x 2K60 inputs
- Two independent 4K60 PGM outputs with mirrored 12G-SDI and HDMI 2.0 plugs
- Still image background
- Two 4K split layers (or one 4K mixing layer) per output
- Dedicated multiviewer with resizable widgets (PGM, PRW and inputs)
- Real-time 10-bit 4:4:4 video processing compliant with HDR10 & HLG
- IP Streaming of any Input or Output based on RTMP
- Advanced audio processing and dynamic routing
- Optional analog and Dante™ audio networking card (32x32 channels)
- Compact 2RU rugged chassis
Discover
QuickVu 4K
The QuickVu 4K is a powerful 4K60 video mixer and seamless presentation switcher
- 4K60 multi-layer seamless presentation switcher
- 10 seamless inputs including 8x 4K60 and 2x 2K60 inputs
- 1x 4K60 PGM output + 1x full HD AUX output, both with mirrored SDI and HDMI plugs
- Still image background
- Two 4K split layers (or one 4K mixing layer) on the PGM output
- Dedicated multiviewer with resizable widgets (PGM, PRW, and inputs)
- Real-time 10-bit 4:4:4 video processing compliant with HDR10 & HLG
- IP Streaming of any Input or Output based on RTMP
- Advanced audio processing and dynamic routing
- Optional analog and Dante™ audio networking card (32x32 channels)
- Compact 2RU rugged chassis
Discover
