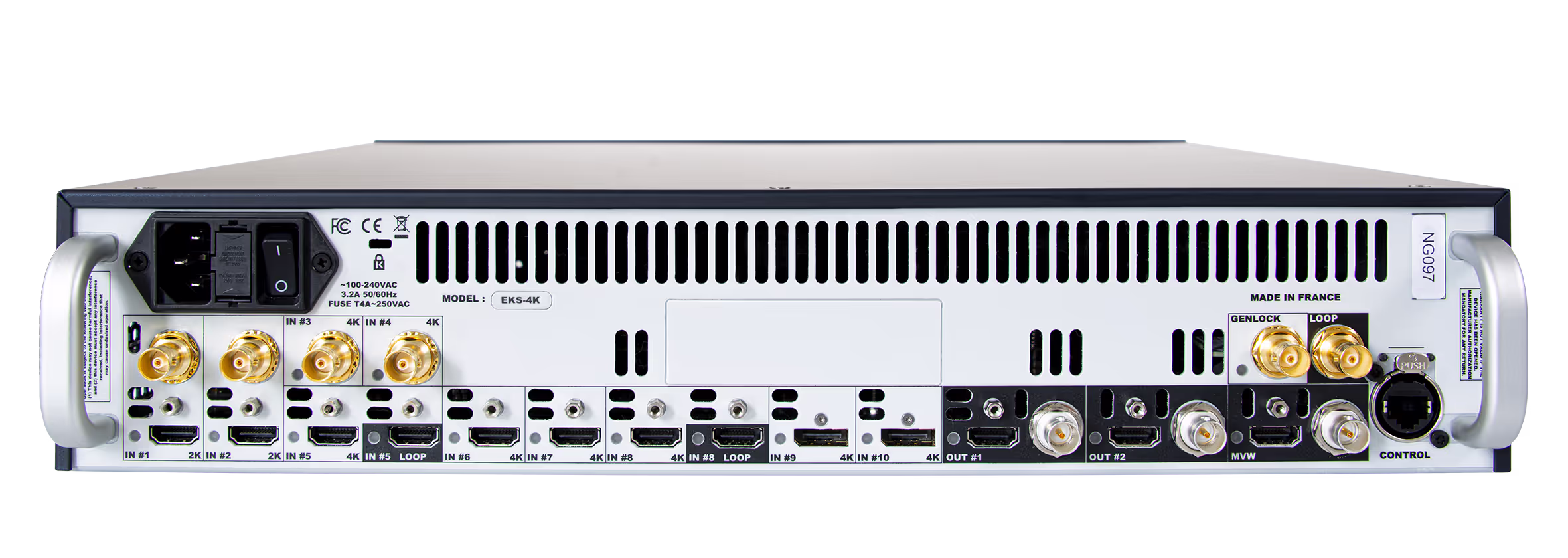

![[Eikos 4K] Back View](https://cdn.prod.website-files.com/6540cb540116ce87ec8b62fe/6581639da81e2a4bf5ca8e58_eikos-4k-far-300dpi-rgb.avif)
The Eikos 4K is a powerful 4K60 multi-layer video mixer and seamless presentation switcher, with ten inputs, two PGM outputs with edge-blending support and one dedicated Multiviewer.
Extremely
USer-Friendly
The CorePlay RCS software provides an intuitive and powerful user interface to configure and control Analog Way CorePlay products. CorePlay Solo offers a REST API over Ethernet for easy integration with third-party control systems. It is also compatible with remote control solutions such as Stream Deck Companion, and natively supports Stream Deck directly connected to the unit. Designed for efficient operation in both standalone and networked environments, CorePlay RCS enables flexible and responsive control across a wide range of applications.
Button TextTHE PERFECT COMPANION FOR PRESENTATION SWITCHERS
4K@60Hz 10-bit output and high playback performance make CorePlay Solo a reliable and versatile video playback solution for live events. System performance is predictable and well documented, making it easy for operators to work with and communicate media specifications.
Playback quality is consistent, with direct support for most common media formats, and preview operations do not disrupt program outputs.
Built for live events and rental staging applications
It’s the small details in CorePlay that make life easier in live events and rental staging applications. With a complete hardware solution, there’s no risk of operating system updates disrupting a show — Analog Way manages the platform, so CorePlay will just work.
Turnaround time in the shop is minimised with fast, simple and secure procedures to reset units to factory defaults and optionally wipe media storage. The integrated 1TB SSD provides fast and reliable local media storage, supporting efficient content deployment between shows. This helps prevent content from one customer being carried over to the next.
Rock-solid reliability
CorePlay Solo is designed to deliver a reliable hardware platform for video playback in demanding environments. It is specifically engineered to withstand live event conditions while ensuring long-term durability for fixed installations. Powered by a Linux engine known for its stability and reliability, CorePlay Solo delivers consistent performance, even in the toughest conditions.
Button TextElevate Your Connectivity and Performance

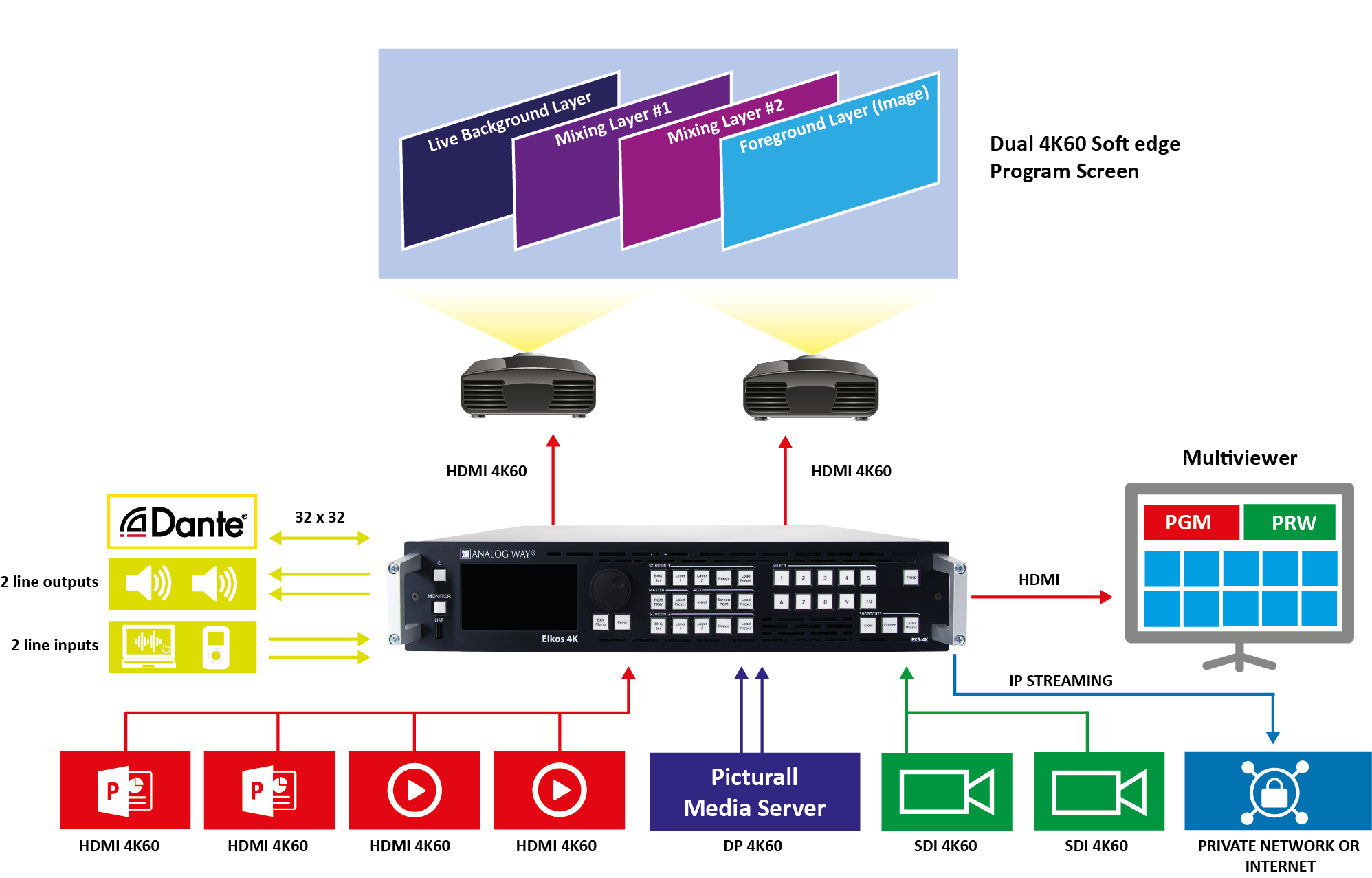

Edge-Blending mode
- 1x hard/soft edge PGM (horizontal or vertical) with
- 1 live or still background
- 2 resizable mixing 4K layers (or 4 split layers)
- 1 foreground 4K image

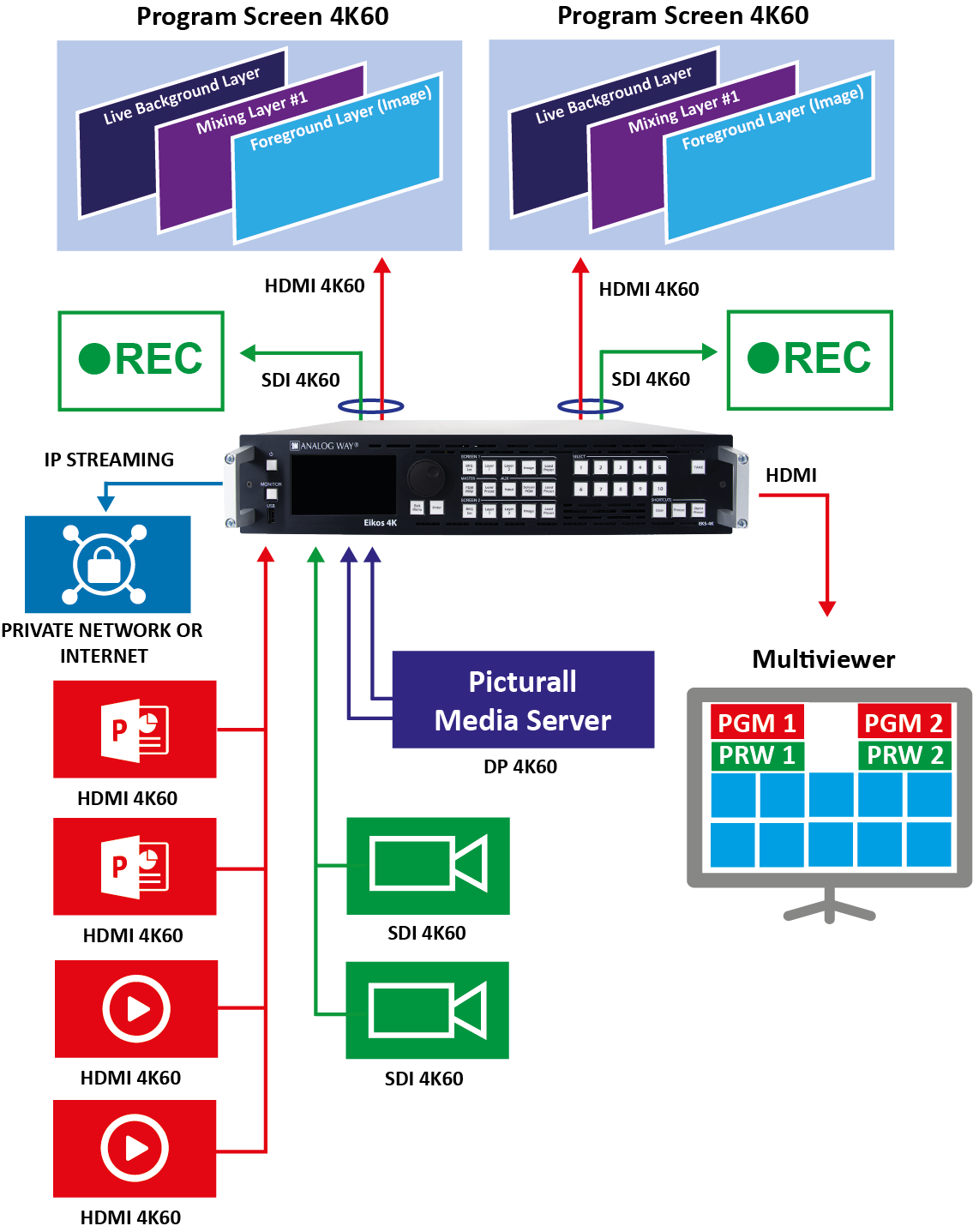

Matrix mode
- 2 independent PGM outputs up to 4K60, with, per output:
- 1 live background
- 1 resizable mixing 4K layer (or 2 split layers)
- 1 foreground 4K image layer

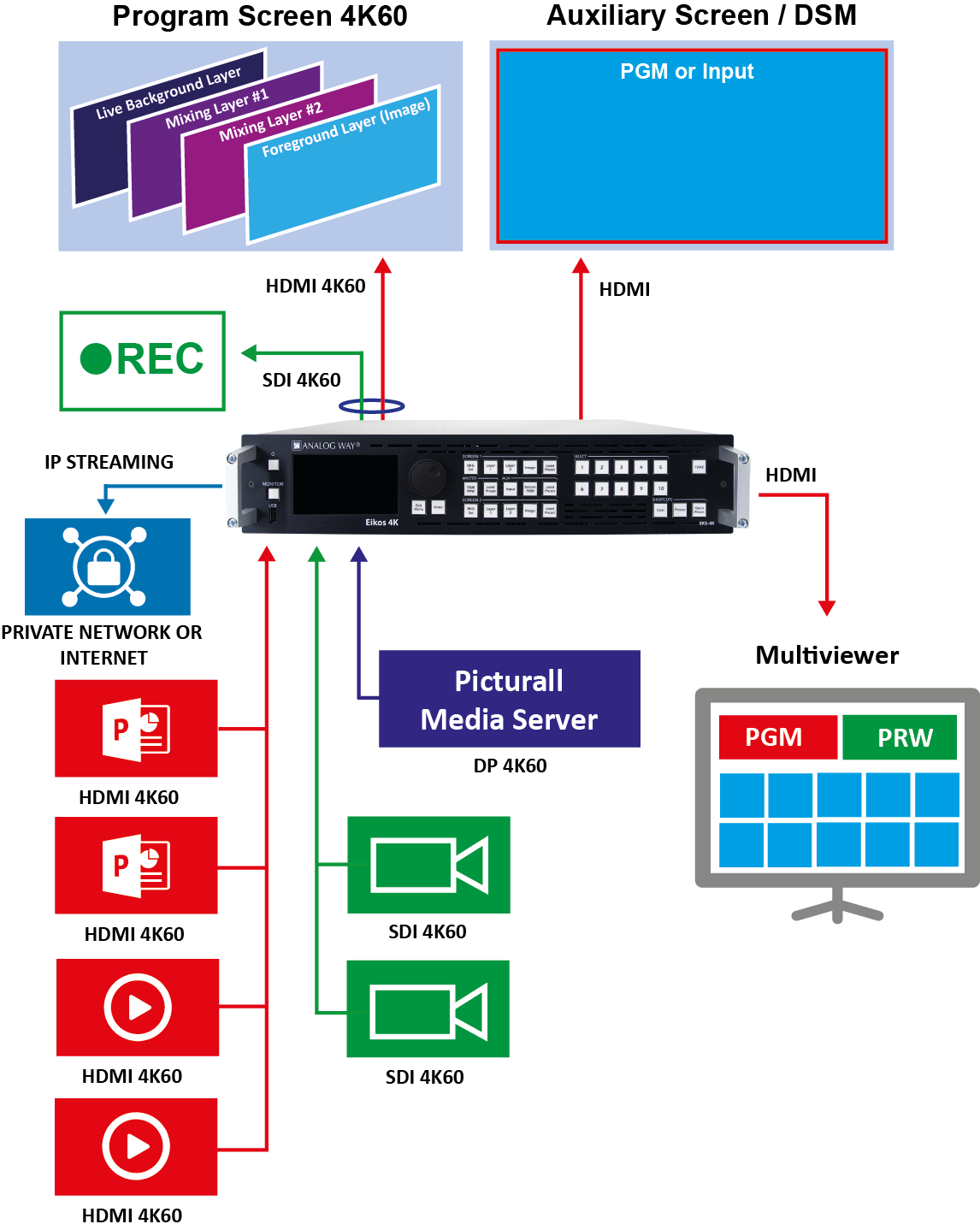

Mixer Mode
- 1 PGM output up to 4K60, with
- 1 live background
- 2 resizable mixing 4K layers (or 4 split layers)
- 1 foreground 4K image layer
- 1 AUX output up to 1080p60
- can downscale and display any input or the PGM output
- 4x HDMI™ 2.0 - up to 4K60 8-bit 4:4:4 or 4K60 12-bit 4:2:2
- 2x DisplayPort 1.2 - up to 4K60 10-bit 4:4:4 or 4K60 12-bit 4:2:2
- 2x 12G/6G/3G-SDI (level A & B) - up to 4K60 10-bit 4:2:2
- 2x HDMI™ 1.4 or 3G-SDI (user selectable input plug) - up to 2K60 10-bit 4:4:4 (HDMI™) or 2K60 10-bit 4:2:2 (SDI)
- Support custom input formats up to 4096 width
- 2x HDMI™ 2.0 connectors + 2x mirrored 12G/6G/3G-SDI (level A & B) connectors
- up to 4K60 8-bit 4:4:4 or 4K60 12-bit 4:2:2 (HDMI™)
- up to 4K60 10-bit 4:2:2 (SDI)
- Support custom output formats up to 4096 width
- 3 modes available: Edge-Blending, Matrix (2 independent PGM) or Switcher (1 PGM + 1 AUX)
- 1x HDMI™ 1.4 + 1x mirrored 3G-SDI
- Resolution up to 2560x1600@60 8-bit 4:2:2
- 17 resizable widgets - customizable layouts (20 memories)
- Monitor the Program, Preview and auxiliary screens and all the inputs
- Built-in clocks, countdown and timers
- RTMP-based Livestreaming of any input or output (including Multiviewer)
- Compatible with all major Web platform such as Youtube, Facebook, Twitch.tv
- Streaming to a private network to feed local clients, like OBS software
- Encoding at up to 1080p30 in H.264 for the video and AAC for the audio
- Predefined Video Quality sets or Custom bitrate for dedicated application
- Management of the personal credentials for web services (URL and Private Key)
- Based on Analog Way exclusive 5th generation scaling engine
- Ultra-low latency (16msec @60Hz)
- BT.601; BT.709; BT.2020 color spaces support
- Split layers mode: double the live layer count (no crossfade effect)
- Advanced EDID management
- Area of Interest and advanced output/screen test patterns
- Compliant with HDR10 and HLG - Built-in SDR/HDR converters
- Colorspace conversion & color corrections based on 3D LUTs
- Compatible with HDCP 1.4 and HDCP 2.2
- De-embed/embed audio channels on all inputs/outputs (PCM):
- 8 channels per HDMI™ 2.0, 12G-SDI or DisplayPort 1.2 input
- 4 channels per 3G-SDI input and 2 channels per HDMI™ 1.4 input
- 8 channels per active output
- Level control, Mute, Balance, Delay, 1kHz Sinus Pattern features
- 1 VU meter display per audio channel on the multi-viewer output
- Fixed or dynamic routing (breakaway or top layer)
- Optional Analog and Dante™ audio networking card:
- 2 analog stereo mini jack line in and line out 1/8’’ (3.5 mm)
- 32x32 Dante™ audio channels @48kHz
- Dual redundancy Ethernet ports - AES67 support
- 4x 4K concurrent still images for the foreground layer
- 4x 4K concurrent still images for the background
- Alpha-channel support
- Still image library with 50 memories
- Multi-file download/upload via Web RCS - capture from live inputs
- True A/B mix effect
- Layer border effects and colors with separate shadow
- Multiple transition effects
- Luma and Chroma Keying
- Cut and Fill at input level
- Layer effects: H/V Flip, Transparency…
- Color effects: B&W, Negative, Sepia and Solarize
- Full-featured Front Panel with 480x272 color LCD screen
- Web RCS: on-board intuitive web-based user interface
- Built-in SMNPv2-MIB
- Shot Box2 / Control Box3: Cost effective control solutions
- RC400T: Ergonomic event controller
- Compatible with SKARHOOJ Air fly Pro controller
- Compatible with Companion and Universe control solutions
- Simple REST API (HTTP) and advanced JSON TCP protocol
- Creston drivers & AW VideoCompositor (Premium Creston GUI)
- Live monitoring of inputs & PGM on the color TFT LCD display
- 200 user definable screen memories and 50 master memories
- Innovative ‘Quick Preset’ feature
- Dedicated BNC with loop for Genlock, Blackburst and tri-level sync
- I/O connector status LEDs for easy troubleshooting
- USB host type A: firmware update, configuration import/export...
- Fully functional simulator for offline configuration & practice
- Gigabit Ethernet via Neutrik RJ45
- Support of TSL protocol
Key Features
- 4K60 multi-layer seamless presentation switcher
- 10 seamless inputs including 8x 4K60 and 2x 2K60 inputs
- Two 4K60 PGM outputs with mirrored 12G-SDI and HDMI™ 2.0 plugs
- 3 modes: Edge-blending (dual-output PGM), Matrix (2 independent PGM) or Switcher (1 PGM + 1 AUX)
- Live or still background
- Up to four 4K split layers (or two 4K mixing layers)
- Dedicated multiviewer with resizable widgets (PGM, PRW, and inputs)
- Real-time 10-bit 4:4:4 video processing compliant with HDR10 & HLG
- IP Streaming of any Input or Output based on RTMP
- Advanced audio processing and dynamic routing
- Optional analog and Dante™ audio networking card (32x32 channels)
- Compact 2RU rugged chassis
