Discover the Alta 4K Presentation Switchers
high-end
Discover the Alta 4K Presentation Switchers
Extreme Performance

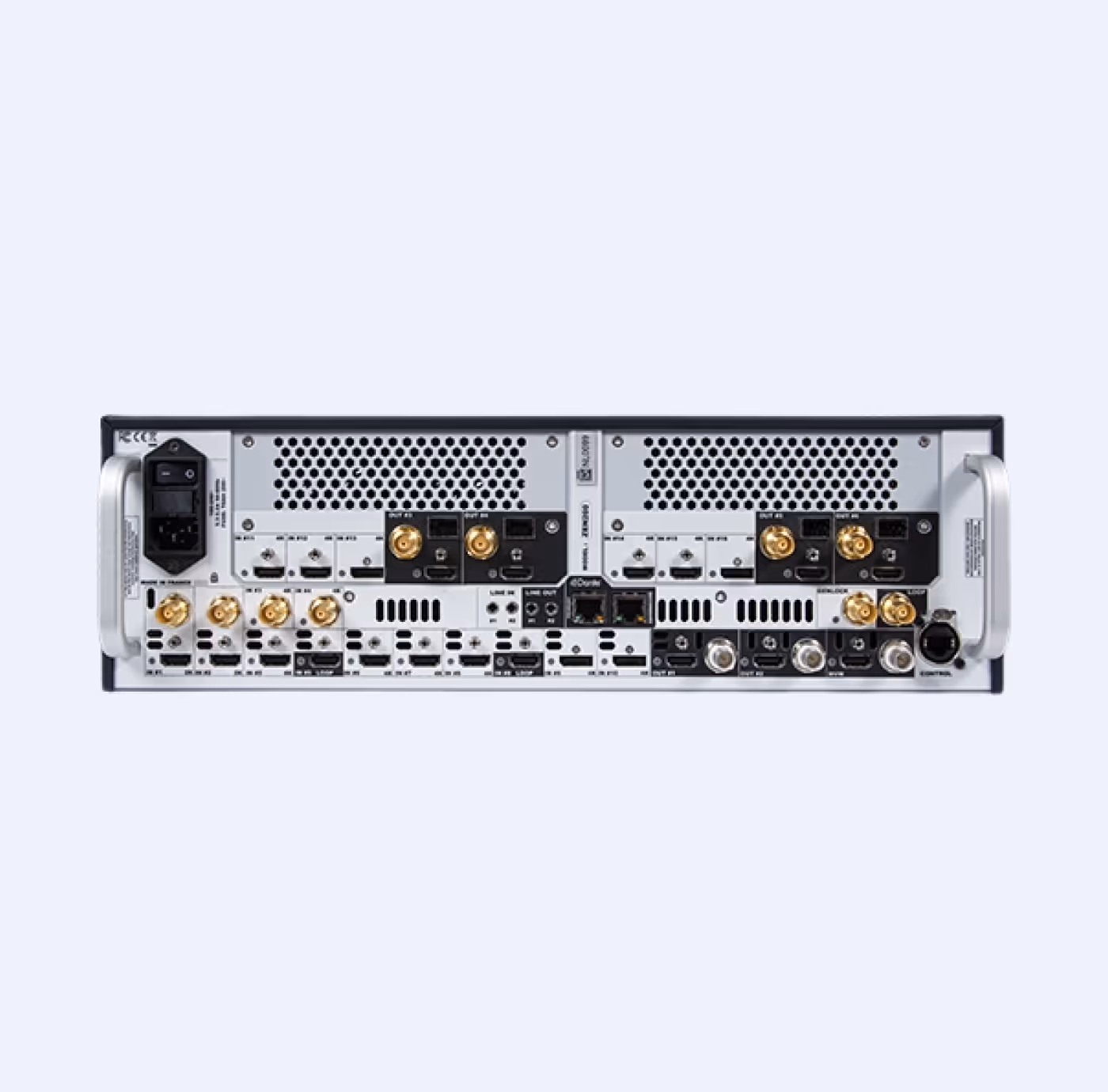

Versatile 4K connectivity
The Alta 4K presentation switchers offer up to sixteen inputs, including fourteen 4K60 inputs (eight HDMI 2.0, four DisplayPort 1.2 and two 12G-SDI) as well as two 1080p inputs with user selectable HDMI and SDI connectors. They feature also up to six independent 4K60 outputs, each with mirrored HDMI and SDI connectors. Four of these outputs are additionally equipped with SFP+ connectors compatible with Analog Way's fiber optic or ST2110 SFP modules. All Alta 4K products come also standard with a dedicated Multiviewer output to control all connected sources as well as Program & Preview screens.
Built for reliability
Built on a strong FPGA-based hardware platform, the Alta 4K series excels in demanding environments, from live events to permanent LED wall control. With top-tier components ensuring reliability, efficient airflow, and a cleanable dust filter, the Alta 4K series operates quietly and offers reliable operation with maximized uptime and reduced maintenance. Compliant with the latest international safety and environmental standards, these presentation switchers offer worry-free operation.
Countless functionalities
The Alta 4K series offers seamless and advanced real-time video processing, including true seamless switching, advanced borders, elegant transitions, alpha channel support, keying options, Cut and Fill at input level, and custom output formats. It also facilitates easy audio management, with an option for Dante audio networking support (32 channels). Additionally, it provides livestreaming capabilities to online platforms like YouTube, Twitch.tv, or software such as OBS Studio for recording or customized livestreaming.
Easy to control and integrate into your ecosystem
The Alta 4K series features an intuitive HTML5-based user interface (Web RCS) for multi-screen control, supporting live source thumbnails and collaboration. It is compatible with various control solutions, including the RC400T event controller and third-party options like Companion, Universe, and SKAARHOJ Air Fly Pro. Additionally, it supports TCP/IP control, SNMP management, and a free Crestron driver, with an offline simulator for training and configuration preparation.
Which Alta 4K is right for you?
Zenith 200
- 4K60 multi-output, multi-layer live presentation switcher
- 16 inputs (14x 4K60 + 2x 2K60 inputs) with versatile connectivity (HDMI, DisplayPort and SDI)
- 6 outputs (4 with mirrored HDMI 2.0, 12G-SDI and SFP+ plugs and 2 with mirrored HDMI 2.0 and 12G-SDI plugs)
- Outputs configurable as up to 4x 4K60 PGM outputs (single screens or edge-blended widescreens)
- Unused outputs configurable as scaled auxiliary outputs at 1080p60 (4 auxiliary outputs max.)
- Live or still image background available on all PGM outputs
- Up to 8x 4K split layers (or 4x 4K mixing layers)
- Additional still image foreground layer available on all screens
- Dedicated multiviewer with resizable widgets
- Class-leading 4K60 10-bit 4:4:4 video processing with 1 frame latency
- HDR processing including real-time SDR/HDR conversion
- RTMP-based livestreaming (up to 1080p30) of any input or output
- Advanced audio processing and dynamic routing
- Optional analog and Dante audio networking card (32x32 channels)
- Dedicated BNC with loop for Genlock, Blackburst and tri-level sync
- Intuitive HTML5-based user interface with live source thumbnails
- 3RU rugged chassis

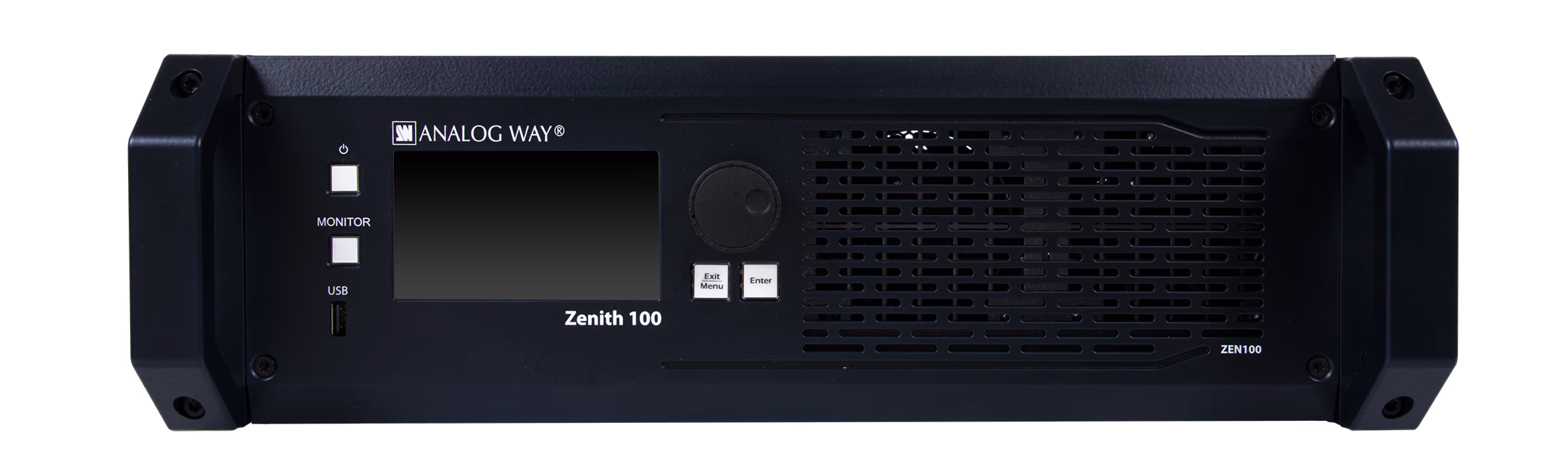

Zenith 100
- 4K60 multi-output, multi-layer live presentation switcher
- 13 inputs (11x 4K60 + 2x 2K60 inputs) with versatile connectivity (HDMI, DisplayPort and SDI)
- 4 outputs (2 with mirrored HDMI 2.0, 12G-SDI and SFP+ plugs and 2 with mirrored HDMI 2.0 and 12G-SDI plugs)
- Outputs configurable as up to 3x 4K60 PGM outputs (single screens or edge-blended widescreens)
- Unused outputs configurable as scaled auxiliary outputs at 1080p60 (2 auxiliary outputs max.)
- Live or still image background available on all PGM outputs
- Up to 6x 4K split layers (or 3x 4K mixing layers)
- Additional still image foreground layer available on all screens
- Dedicated multiviewer with resizable widgets
- Class-leading 4K60 10-bit 4:4:4 video processing with 1 frame latency
- HDR processing including real-time SDR/HDR conversion
- RTMP-based livestreaming (up to 1080p30) of any input or output
- Advanced audio processing and dynamic routing
- Optional analog and Dante audio networking card (32x32 channels)
- Dedicated BNC with loop for Genlock, Blackburst and tri-level sync
- Intuitive HTML5-based user interface with live source thumbnails
- 3RU rugged chassis
Zenith 100
- 4K60 multi-output, multi-layer live presentation switcher
- 13 inputs (11x 4K60 + 2x 2K60 inputs) with versatile connectivity (HDMI, DisplayPort and SDI)
- 4 outputs (2 with mirrored HDMI 2.0, 12G-SDI and SFP+ plugs and 2 with mirrored HDMI 2.0 and 12G-SDI plugs)
- Outputs configurable as up to 3x 4K60 PGM outputs (single screens or edge-blended widescreens)
- Unused outputs configurable as scaled auxiliary outputs at 1080p60 (2 auxiliary outputs max.)
- Live or still image background available on all PGM outputs
- Up to 6x 4K split layers (or 3x 4K mixing layers)
- Additional still image foreground layer available on all screens
- Dedicated multiviewer with resizable widgets
- Class-leading 4K60 10-bit 4:4:4 video processing with 1 frame latency
- HDR processing including real-time SDR/HDR conversion
- RTMP-based livestreaming (up to 1080p30) of any input or output
- Advanced audio processing and dynamic routing
- Optional analog and Dante audio networking card (32x32 channels)
- Dedicated BNC with loop for Genlock, Blackburst and tri-level sync
- Intuitive HTML5-based user interface with live source thumbnails
- 3RU rugged chassis
Zenith 200
- 4K60 multi-output, multi-layer live presentation switcher
- 16 inputs (14x 4K60 + 2x 2K60 inputs) with versatile connectivity (HDMI, DisplayPort and SDI)
- 6 outputs (4 with mirrored HDMI 2.0, 12G-SDI and SFP+ plugs and 2 with mirrored HDMI 2.0 and 12G-SDI plugs)
- Outputs configurable as up to 4x 4K60 PGM outputs (single screens or edge-blended widescreens)
- Unused outputs configurable as scaled auxiliary outputs at 1080p60 (4 auxiliary outputs max.)
- Live or still image background available on all PGM outputs
- Up to 8x 4K split layers (or 4x 4K mixing layers)
- Additional still image foreground layer available on all screens
- Dedicated multiviewer with resizable widgets
- Class-leading 4K60 10-bit 4:4:4 video processing with 1 frame latency
- HDR processing including real-time SDR/HDR conversion
- RTMP-based livestreaming (up to 1080p30) of any input or output
- Advanced audio processing and dynamic routing
- Optional analog and Dante audio networking card (32x32 channels)
- Dedicated BNC with loop for Genlock, Blackburst and tri-level sync
- Intuitive HTML5-based user interface with live source thumbnails
- 3RU rugged chassis
