Zenith 200
Zenith 200
![[Zenith 200] Front View](https://cdn.prod.website-files.com/6540cb540116ce87ec8b62fe/657866747f0b9aff29b22b1d_Zenith200-fav-web.avif)

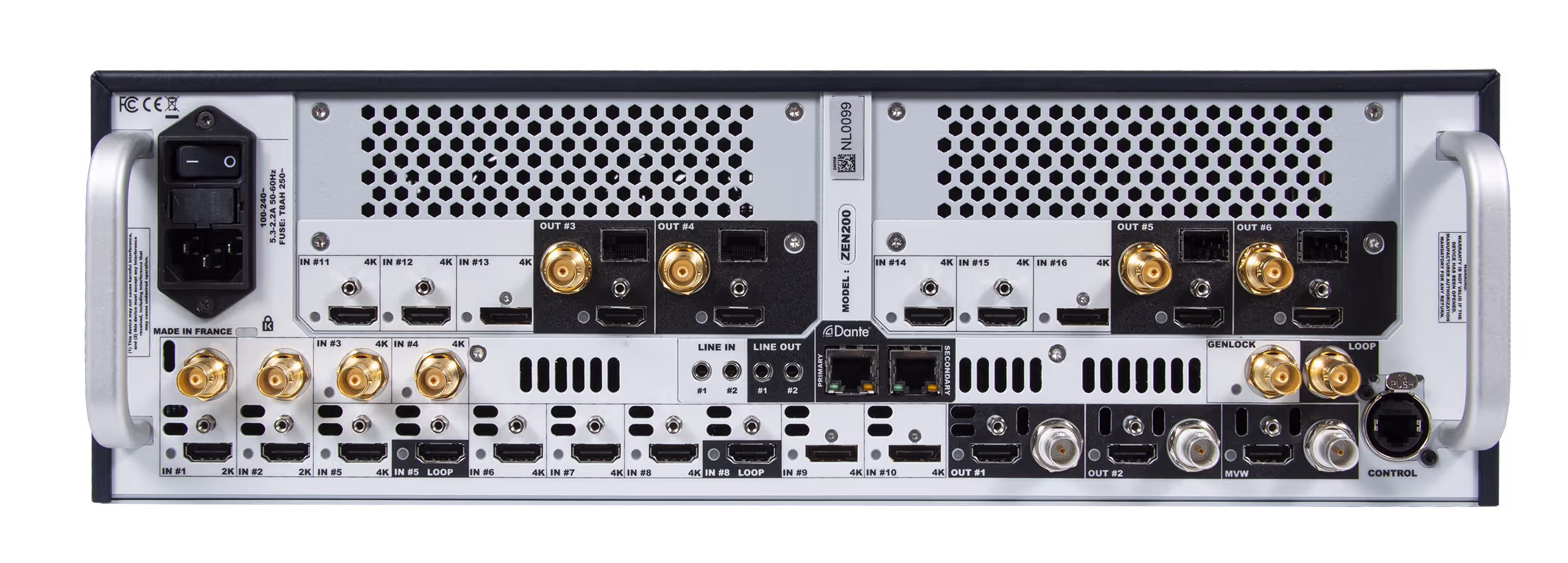

![[Zenith 200] Back View](https://cdn.prod.website-files.com/6540cb540116ce87ec8b62fe/6578667c35d3e7e087e59cd3_Zenith200-far-web.avif)
The Zenith 200 is a high-performance multi-screen & multi-layer 4K60 presentation switcher and videowall processor based on the powerful Alta 4K platform. Featuring heavy-duty design, 16 inputs and 6 outputs with versatile 4K connectivity, state-of-the-art real-time processing, advanced video effects and user-friendly HTML5-based user interface, the Zenith 200 is a perfect fit for medium to large-scale live events and fixed installations requiring the highest reliability and performance.
Extremely
USer-Friendly
The CorePlay RCS software provides an intuitive and powerful user interface to configure and control Analog Way CorePlay products. CorePlay Solo offers a REST API over Ethernet for easy integration with third-party control systems. It is also compatible with remote control solutions such as Stream Deck Companion, and natively supports Stream Deck directly connected to the unit. Designed for efficient operation in both standalone and networked environments, CorePlay RCS enables flexible and responsive control across a wide range of applications.
Button TextTHE PERFECT COMPANION FOR PRESENTATION SWITCHERS
4K@60Hz 10-bit output and high playback performance make CorePlay Solo a reliable and versatile video playback solution for live events. System performance is predictable and well documented, making it easy for operators to work with and communicate media specifications.
Playback quality is consistent, with direct support for most common media formats, and preview operations do not disrupt program outputs.
Built for live events and rental staging applications
It’s the small details in CorePlay that make life easier in live events and rental staging applications. With a complete hardware solution, there’s no risk of operating system updates disrupting a show — Analog Way manages the platform, so CorePlay will just work.
Turnaround time in the shop is minimised with fast, simple and secure procedures to reset units to factory defaults and optionally wipe media storage. The integrated 1TB SSD provides fast and reliable local media storage, supporting efficient content deployment between shows. This helps prevent content from one customer being carried over to the next.
Rock-solid reliability
CorePlay Solo is designed to deliver a reliable hardware platform for video playback in demanding environments. It is specifically engineered to withstand live event conditions while ensuring long-term durability for fixed installations. Powered by a Linux engine known for its stability and reliability, CorePlay Solo delivers consistent performance, even in the toughest conditions.
Button Text
- 8x HDMI™ 2.0 - up to 4K60 8-bit 4:4:4 or 4K60 12-bit 4:2:2
- 4x DisplayPort 1.2 - up to 4K60 10-bit 4:4:4 or 4K60 12-bit 4:2:2
- 2x 12G/6G/3G-SDI (level A & B) - up to 4K60 10-bit 4:2:2
- 2x HDMI™ 1.4 or 3G-SDI (user selectable input plug) - up to 2K60 10-bit 4:4:4 (HDMI™) or 2K60 10-bit 4:2:2 (SDI)
- Support custom input formats up to 8192 width / height
- 2 outputs with mirrored HDMI™ 2.0 and 12G-SDI connectors (level 1 & B)
- 4 outputs with mirrored HDMI™ 2.0, 12G-SDI (level A & B) and SFP+ connectors compatible with Analog Way's fiber optic or ST2110 SFP modules
- Up to 4 outputs configurable as independent screens or as multi-output widescreens
- Up to 4K60 8-bit 4:4:4 or 4K60 12-bit 4:2:2 (HDMI™)
- Up to 4K60 10-bit 4:2:2 (SDI / SFP+)
- Support custom output formats up to 8192 width / height
- 1 output with mirrored HDMI™ 1.4 and 3G-SDI connectors
- Up to 2560x1600@60 8-bit 4:2:2
- 27 resizable widgets - customizable layouts (20 memories)
- Monitor the Program, Preview and auxiliary screens and all the inputs
- Built-in clocks, countdown and timers
- RTMP-based livestreaming of any input or output (including Multiviewer)
- Compatible with all major Web platform such as YouTube, Facebook or Twitch.tv
- Streaming to a private network to feed local clients like OBS software
- Encoding at up to 1080p30 in H.264 for the video and AAC for the audio
- Predefined video quality sets or custom bitrate for dedicated application
- Management of the personal credentials for web services (URL and Private Key)
- Outputs configurable as up to 4x 4K60 PGM outputs (single screens or edge-blended widescreens)
- Unused outputs configurable as scaled auxiliary 1080p60 outputs (4 max)
- Flexible layer resource management
- 200 user definable screen memories and 50 master memories
- Support of mixing (seamless transitions) and split (cut transitions) layers
- Up to 8 split layers (or 4 mixing layers)
- Live or still image background available on all PGM outputs
- Additional still image foreground layer available on all screens
- Based on Analog Way exclusive 5th generation scaling engine
- Native 4K60 10-bit 4:4:4 video processing
- Ultra-low latency (as low as 16msec @60Hz)
- BT.709 and BT.2020 color spaces support
- Advanced EDID management
- Area of Interest and advanced output/screen test patterns
- HDR processing including real-time SDR/HDR conversion
- Advanced color correction with custom external 3D LUTs
- High Frame Rate up to 144Hz
- Compatible with HDCP 1.4 and HDCP 2.2
- De-embed/embed audio channels on all inputs/outputs (PCM):
- 8 channels per HDMI™ 2.0, 12G-SDI or DisplayPort 1.2 input
- 4 channels per 3G-SDI input and 2 channels per HDMI™ 1.4 input 8 channels per active output
- 8 channels per active output
- Level control, Mute, Balance, Delay, 1kHz Sinus Pattern features
- 1 VU meter display per audio channel on the multi-viewer output
- Fixed or dynamic routing (breakaway or top layer)
- Optional Analog and Dante™ audio networking card:
- 2 analog stereo mini jack line in and line out 1/8’’ (3.5 mm)
- 32x32 Dante™ audio channels @48kHz
- Dual redundancy Ethernet ports - AES67 support
- Up to 4x 4K concurrent still images available per screen for the background layer
- Alpha-channel support
- Still image library with 50 memories
- Multi-file download/upload via Web RCS
- Capture from live inputs and outputs
- Layer border effects and colors with separate shadow
- Multiple transition effects
- Luma and Chroma Keying
- Cut and Fill at input level
- Layer effects: H/V Flip, Transparency…
- Color effects: B&W, Negative, Sepia and Solarize
- Large color TFT LCD display (480x272 pixels) with full-featured menu
- Web RCS: on-board intuitive HTML5-based user interface
- Built-in SMNPv2-MIB
- Shot Box2 / Control Box3: Cost effective control solutions
- RC400T: Ergonomic event controller
- Compatible with SKARHOOJ Air fly Pro controller
- Compatible with Companion and Universe control solutions
- Simple REST API (HTTP) and advanced JSON TCP protocol
- Creston drivers
- AW VideoCompositor (Premium Creston GUI)
- Rugged 3RU chassis with cleanable air filter
- Live monitoring of inputs on the color TFT LCD display
- Innovative ‘Quick Preset’ feature
- Dedicated BNC with loop for Genlock, Blackburst and tri-level sync
- I/O connector status LEDs for easy troubleshooting
- USB host type A: firmware update, configuration import/export...
- Fully functional simulator for offline configuration & practice
- Gigabit Ethernet via Neutrik RJ45
Key Features
- 4K60 multi-output, multi-layer live presentation switcher
- 16 inputs (14x 4K60 + 2x 2K60 inputs) with versatile connectivity (HDMI™, DisplayPort and SDI)
- 6 outputs (4 with mirrored HDMI™ 2.0, 12G-SDI and SFP+ plugs and 2 with mirrored HDMI™ 2.0 and 12G-SDI plugs)
- Outputs configurable as up to 4x 4K60 PGM outputs (single screens or edge-blended widescreens)
- Unused outputs configurable as scaled auxiliary outputs at 1080p60 (4 auxiliary outputs max.)
- Live or still image background available on all PGM outputs
- Up to 8x 4K split layers (or 4x 4K mixing layers)
- Additional still image foreground layer available on all screens
- Dedicated multiviewer with resizable widgets
- Class-leading 4K60 10-bit 4:4:4 video processing with 1 frame latency
- HDR processing including real-time SDR/HDR conversion
- RTMP-based livestreaming (up to 1080p30) of any input or output
- Advanced audio processing and dynamic routing
- Optional analog and Dante audio networking card (32x32 channels)
- Dedicated BNC with loop for Genlock, Blackburst and tri-level sync
- Intuitive HTML5-based user interface with live source thumbnails
- 3RU rugged chassis
