Picturall Pro Mark II

Picturall Twin Compact Mark II

Picturall Quad Compact Mark II

Picturall Quad Mark II

Rock

Solid

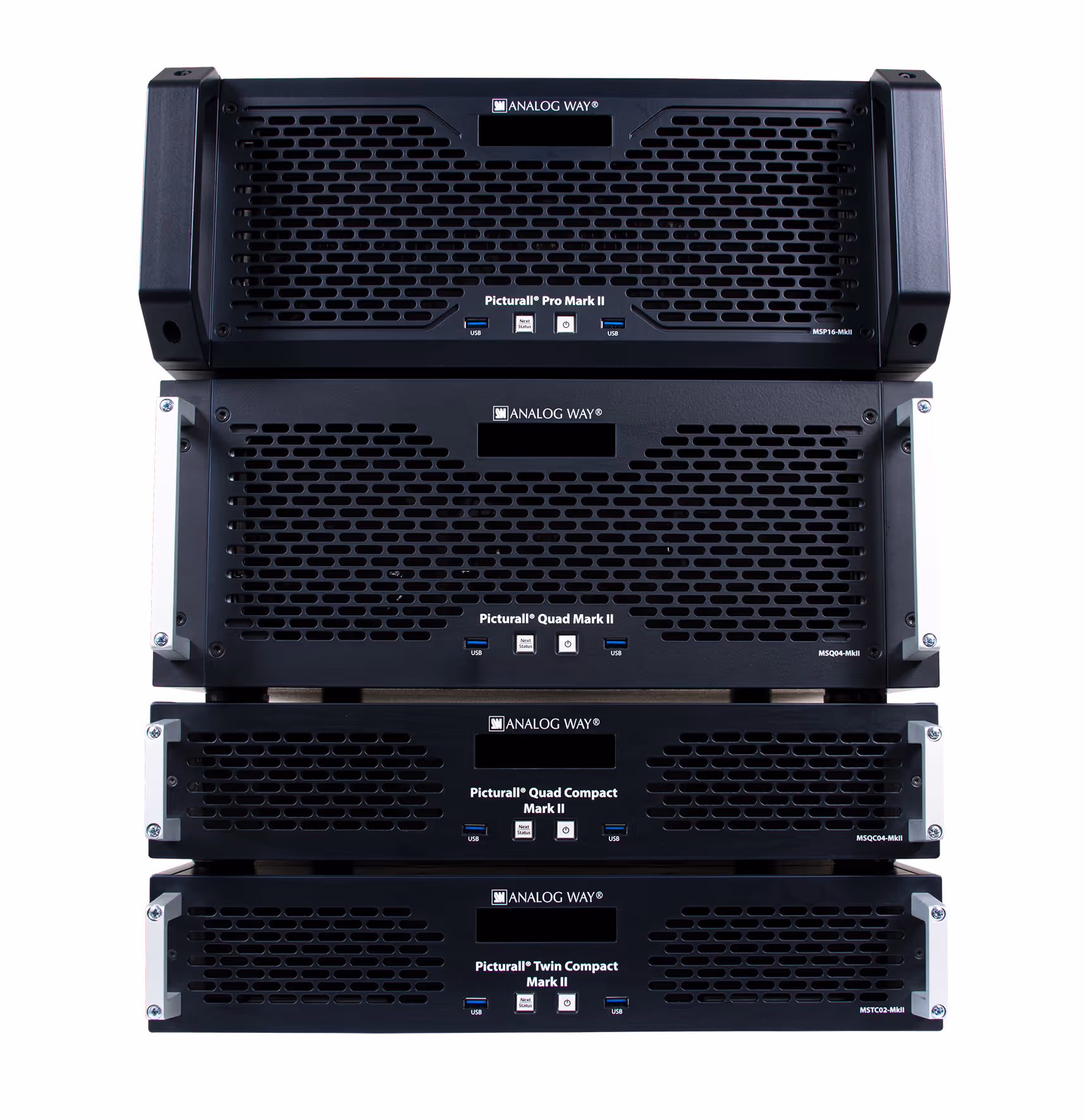

Discover the Picturall Mark II media servers

The Picturall Mark II series is an extensive range of heavy-duty media servers designed to play huge video content across large video canvases, while providing ease-of-use and rock-solid reliability at affordable prices.
See all products

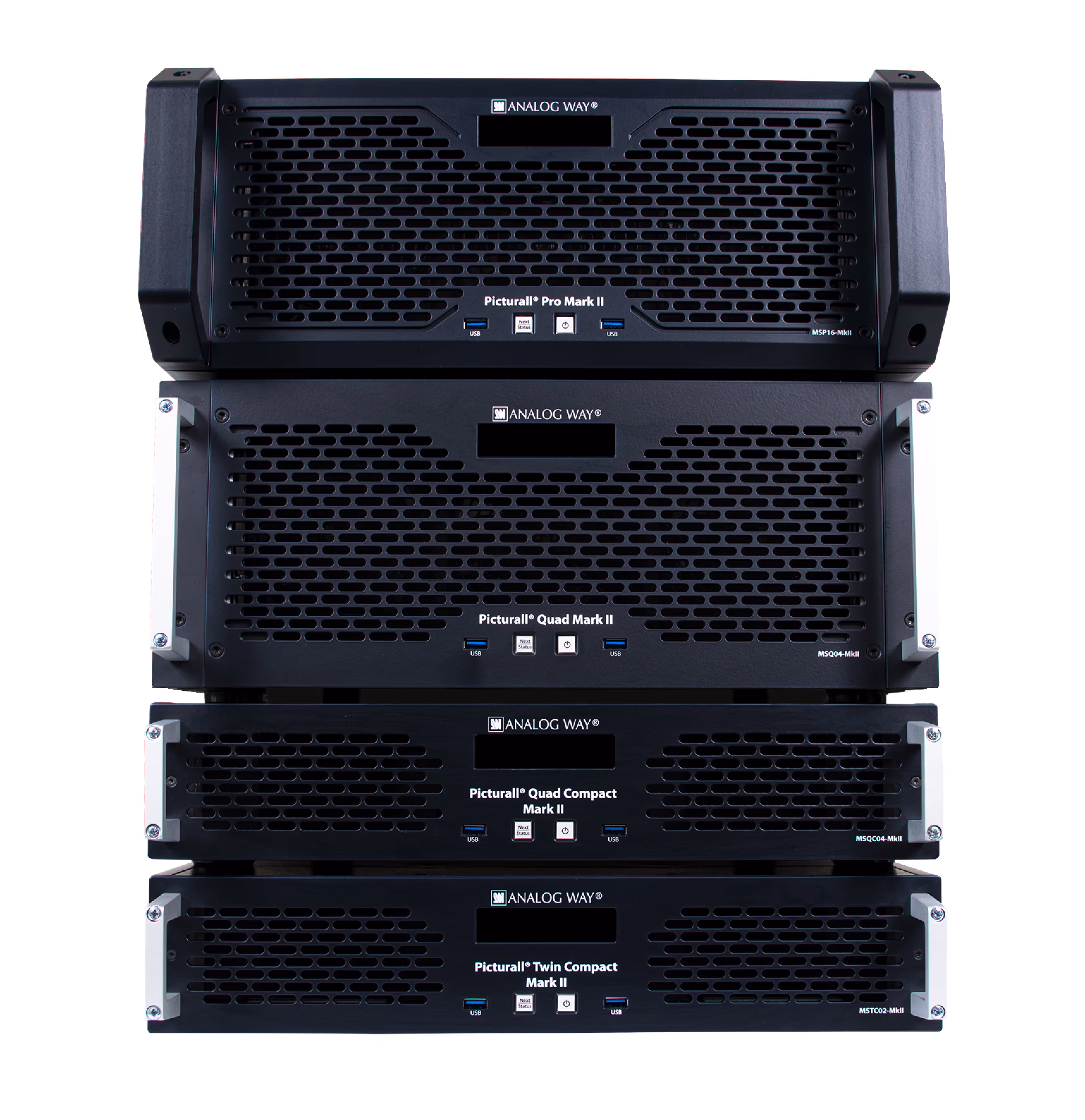

Picturall™ Mark II media servers

rock solid

Discover the Picturall Mark II media servers

The Picturall™ Mark II series is an extensive range of heavy-duty media servers designed to play huge video content across large video canvases, while providing ease-of-use and rock-solid reliability at affordable prices.
overview

Outstanding
Performance

High performance
Deliver industry-leading performance so that your show runs like clockwork.
Best image quality
Drive up to 16 LED wall 4K@60Hz controllers or video projectors from a single server unit
Resolution
Power to play media up to 16K resolution or uncompressed image sequences up to 8K@60Hz 10-bit
Tailored to large scale auditoriums
The Picturall Mark II series is the obvious solution to any demanding video playback need in fixed installations
Museums, broadcast, houses of worship, video rentals, live events and more.
key features

Rock-Solid Reliability

The Picturall Mark II media servers, built on Analog Way's robust hardware, ensure optimized uptimes and durability for critical applications. The chassis allows easy access for swift cleaning, reducing downtime during maintenance. Operating on the dependable Linux software engine by Picturall, known for 15 years of reliable development and field experience.

key features

Powerful features

Picturall Mark II media servers enable creative integration with features such as automatic show start, custom resolutions, cue lists, timecode-based triggering, real-time effects, and multi-user control.

Key Features
Multi-channel audio processing
Picturall Mark II media servers support synchronized multi-channel audio playback from various sources, offering optional audio interfaces like 32-channel Dante™ for network access and compatibility with multiple 3rd party USB interfaces.
Learn more
RCS Flexible Controls
key features

Easy Setup and Control

The Picturall Commander software is an intuitive, elegant and powerful user interface to configure and control the Picturall Mark II media servers. All the servers offer IP (Ethernet) and Art-Net interface, which enables easy integration with many third-party control systems. The Picturall Mark II media servers are also compatible with various remote control software such as Universe or Companion.

key features

Advanced media processing

The Picturall Mark II media servers have been designed to offer the best image quality and to process a wide variety of network streams and media including:

Show More Details
RCS Flexible Controls
Extensive input options

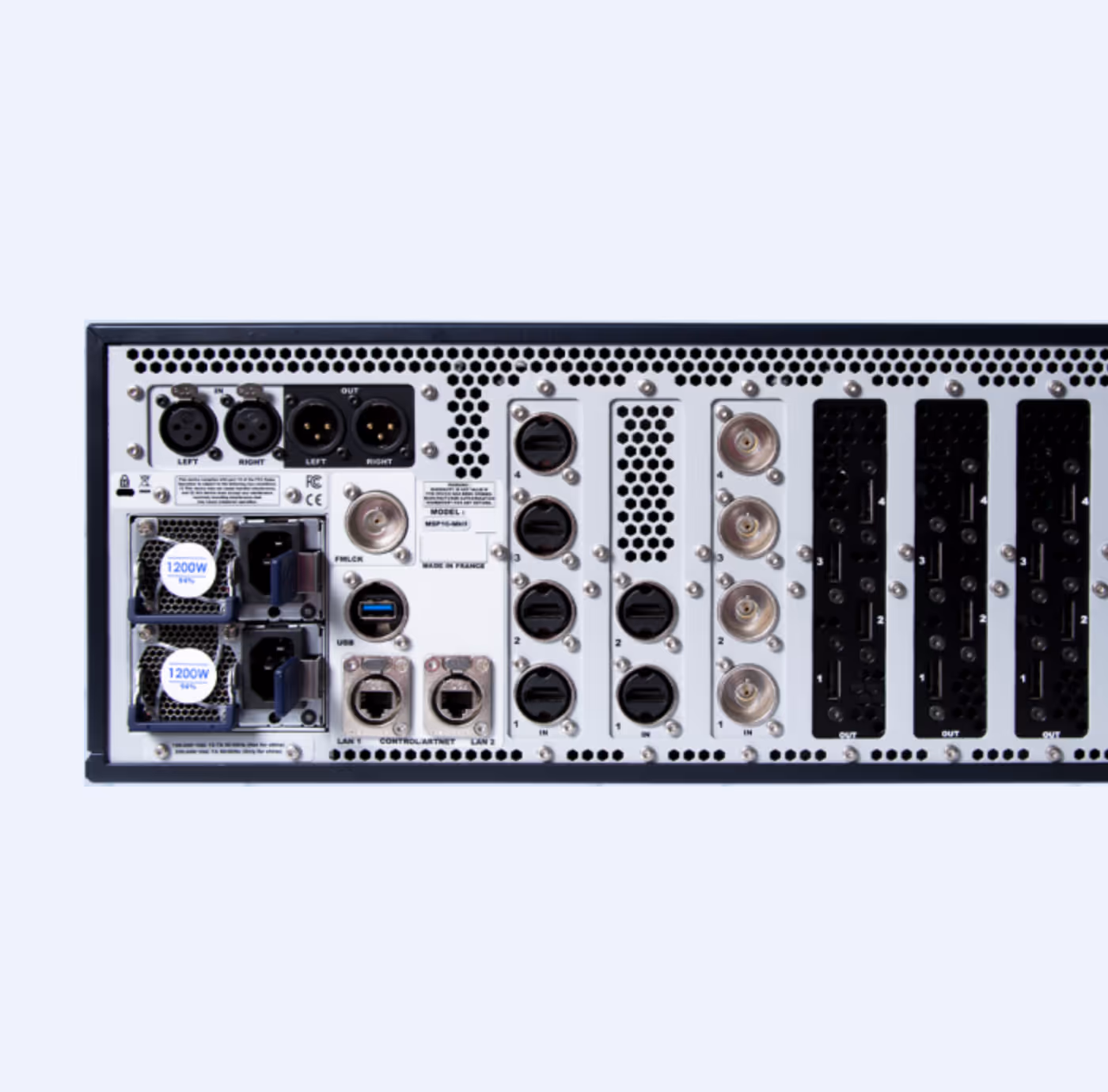

The Picturall Mark II media servers, depending on chassis size, can be equipped with up to six low-latency input cards to capture 24x 1080p@60Hz or 6x 4K@60Hz sources. They offer various input interfaces, supporting 3G-SDI, HDMI 1.4, HDMI 2.0, and professional Neutrik connectivity. They can also receive multiple network video streams (RTSP, RTMP, SRT, UDP) and are compatible with Newtek™ NDI v5.0 for live video streaming. Additionally, they can display HTML-based web content with full JavaScript support.

High-performance storage

The Picturall Mark II media servers include NVMe™ read-intensive professional drives (option for Twin Compact), ensuring consistent performance and reliability for 24/7 use. With a PCIe® Gen4 x4 interface, these drives can deliver read speeds up to 10.5 GB/s in RAID 0, perfect for demanding video playback. Storage options range from 1TB to 32TB.

Faster networking

The Picturall Mark II media servers feature high network bandwidth with two standard 10Gb/s Ethernet ports (optional for Twin Compact), allowing faster transmission of large media files and more networked video streams (e.g., NDI, RTSP, RTMP, SRT, UDP). Optionally, you can install two additional 1Gb/s ports or one additional 10Gb/s port for greater network flexibility.

Compatible with DPH104 image processor

The Picturall Mark II media servers work with the Analog Way DPH104 image processor to convert one 4K DisplayPort output into four 1080p HDMI outputs. This allows a single Picturall Pro Mark II server with 4 output cards to drive up to 64 synced full HD outputs, or a Picturall Quad Mark II to drive 16 synced full HD outputs.

Which Picturall Mark II media servers is right for you?

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Picturall Quad Mark II

Picturall Quad Mark II is a modular, heavy-duty 8K media server
  • Heavy-duty 8K media server
  • 4 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 24 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 4K@60Hz 10-bit
  • Playback of up to 38 layers of 1080p@60Hz video or 10 layers of 4K@60Hz video or 2 layers of 8K@60 video (with AWX codec and the 2 NVME drive option in RAID-0 configuration)
  • Ruggedized, rack mountable 4RU chassis

‍

Discover

Picturall Quad Compact Mark II

Picturall Quad Compact Mark II is a compact, heavy-duty 8K media server.
  • Compact, heavy-duty 8K media server
  • 4 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 8 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 4K@60Hz 10-bit
  • Playback of up to 38 layers of 1080p@60Hz video or 10 layers of 4K@60Hz video or 2 layers of 8K@60 video (with AWX codec and the 2 NVME drive option in RAID-0 configuration)
  • Ruggedized, rack mountable 2RU chassis

‍

Discover

Picturall Twin Compact Mark II

Picturall Twin Compact Mark II is a compact, heavy-duty 4K media server
  • Compact, heavy-duty 4K media server
  • 2 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 8 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 1080@60Hz 10-bit
  • Playback of up to 28 layers of 1080p@60Hz video or 6 layers of 4K@60Hz video (with AWX codec and NVME drive option)
  • Ruggedized, rack mountable 2RU chassis
Discover

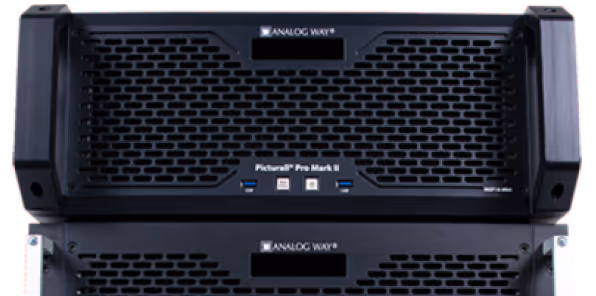

Picturall Pro Mark II

Picturall Pro Mark II is a modular, high-performance 16K media server
  • Mission critical modular 16K media server
  • 4 DisplayPort 1.2 outputs scalable up to 16 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 24 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 8K@60Hz 10-bit
  • Playback of up to 66 layers of full HD video or 18 layers of 4K@60Hz video or 6 layers of 8K@60Hz video or 1 layer of 16K@60Hz video (with AWX codec)
  • Ruggedized, rack mountable 4RU chassis

‍

Discover
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Picturall Quad Compact Mark II

Picturall Quad Compact Mark II is a compact, heavy-duty 8K media server.
  • Compact, heavy-duty 8K media server
  • 4 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 8 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 4K@60Hz 10-bit
  • Playback of up to 38 layers of 1080p@60Hz video or 10 layers of 4K@60Hz video or 2 layers of 8K@60 video (with AWX codec and the 2 NVME drive option in RAID-0 configuration)
  • Ruggedized, rack mountable 2RU chassis

‍

Discover

Picturall Twin Compact Mark II

Picturall Twin Compact Mark II is a compact, heavy-duty 4K media server
  • Compact, heavy-duty 4K media server
  • 2 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 8 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 1080@60Hz 10-bit
  • Playback of up to 28 layers of 1080p@60Hz video or 6 layers of 4K@60Hz video (with AWX codec and NVME drive option)
  • Ruggedized, rack mountable 2RU chassis
Discover

Picturall Quad Mark II

Picturall Quad Mark II is a modular, heavy-duty 8K media server
  • Heavy-duty 8K media server
  • 4 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 24 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 4K@60Hz 10-bit
  • Playback of up to 38 layers of 1080p@60Hz video or 10 layers of 4K@60Hz video or 2 layers of 8K@60 video (with AWX codec and the 2 NVME drive option in RAID-0 configuration)
  • Ruggedized, rack mountable 4RU chassis

‍

Discover

Picturall Pro Mark II

Picturall Pro Mark II is a modular, high-performance 16K media server
  • Mission critical modular 16K media server
  • 4 DisplayPort 1.2 outputs scalable up to 16 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 24 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 8K@60Hz 10-bit
  • Playback of up to 66 layers of full HD video or 18 layers of 4K@60Hz video or 6 layers of 8K@60Hz video or 1 layer of 16K@60Hz video (with AWX codec)
  • Ruggedized, rack mountable 4RU chassis

‍

Discover
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Picturall Twin Compact Mark II

Picturall Twin Compact Mark II is a compact, heavy-duty 4K media server
  • Compact, heavy-duty 4K media server
  • 2 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 8 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 1080@60Hz 10-bit
  • Playback of up to 28 layers of 1080p@60Hz video or 6 layers of 4K@60Hz video (with AWX codec and NVME drive option)
  • Ruggedized, rack mountable 2RU chassis
Discover

Picturall Quad Compact Mark II

Picturall Quad Compact Mark II is a compact, heavy-duty 8K media server.
  • Compact, heavy-duty 8K media server
  • 4 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 8 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 4K@60Hz 10-bit
  • Playback of up to 38 layers of 1080p@60Hz video or 10 layers of 4K@60Hz video or 2 layers of 8K@60 video (with AWX codec and the 2 NVME drive option in RAID-0 configuration)
  • Ruggedized, rack mountable 2RU chassis

‍

Discover

Picturall Quad Mark II

Picturall Quad Mark II is a modular, heavy-duty 8K media server
  • Heavy-duty 8K media server
  • 4 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 24 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 4K@60Hz 10-bit
  • Playback of up to 38 layers of 1080p@60Hz video or 10 layers of 4K@60Hz video or 2 layers of 8K@60 video (with AWX codec and the 2 NVME drive option in RAID-0 configuration)
  • Ruggedized, rack mountable 4RU chassis

‍

Discover

Picturall Pro Mark II

Picturall Pro Mark II is a modular, high-performance 16K media server
  • Mission critical modular 16K media server
  • 4 DisplayPort 1.2 outputs scalable up to 16 DisplayPort 1.2 outputs
  • Output resolution up to 4096 x 2160@60Hz 10-bit
  • Up to 24 inputs (HDMI™ 1.4, HDMI™ 2.0, 3G-SDI)
  • Uncompressed image sequence playback up to 8K@60Hz 10-bit
  • Playback of up to 66 layers of full HD video or 18 layers of 4K@60Hz video or 6 layers of 8K@60Hz video or 1 layer of 16K@60Hz video (with AWX codec)
  • Ruggedized, rack mountable 4RU chassis

‍

Discover
the Picturall Mark II Configurator

Build the Media server of your dreams

Customize Picturall Pro/Quad/Twin
Start to configure now

AWX Encoder Plugin for
adobe CC

  1. AWX is a proprietary graphics card accelerated codec family for Analog Way Picturall media servers
  2. AWX plugin for Adobe CC provides AWX export capabilities to Adobe Media Encoder, Premiere and After Effects
Discover

Legacy Picturall media servers

You can find the most recent software updates and technical documentations for the previous generation of Picturall servers here:
Picturall Pro
Picturall Quad
Picturall Quad Compact
Picturall Twin
Picturall Twin Compact
